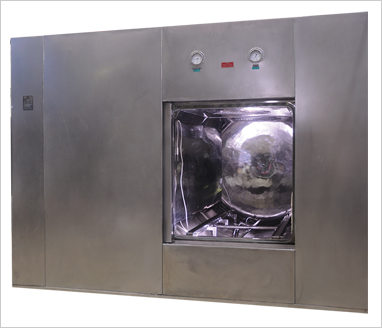

Air+Steam Sterilizer

 Air-Steam-Sterilizer
Air-Steam-Sterilizer

USES:
his counter pressure sterilizers are ideal for Pharmaceutical Companies, Laboratories, & Food Processing Industries, etc. They are designed for safe & efficient sterilization of various items such as Solutions in closed containers viz. ampoules, vial, glass bottles, PVC bottles, Syringes, Tubes, PE bottles, PP bottles, IV Bags, Semi-open containers, Blister Packing, Contact Lenses etc. & also for Pasteurization of products like Blood plasma.

"SWS" type where treatment is carried out with forced Superheated Water circulation with spray distribution system

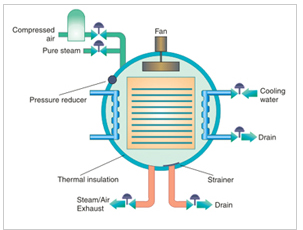

STEAM+AIR MIXTURE "SAS" PROCESS :

Superheated-Water-Shower

Steam enter the chamber while circulating fans ensures a proper temperature in the chamber. Sterilization is carried for preset temperature level & time.

Internal Heat exchangers supplied with cooling water the fan is rotated to achieve ventilating. Counter pressure is maintained as per SWS type system.

FEATURES :
Circulating Fans made of stainless steel mounted on the top or Horizontally.
Cooling coils located in the chamber are made of Stainless Steel

STEAM+AIR MIXTURE "SAS" PROCESS :

The chamber is of round cross-section constructed of heavy duty stainless steel 316L/316Ti to withstand pressure of 3 Kg/cm. It is insulated with Two rails are provided in the chamber bottom for easy loading & unloading of the material on Carriage.

The Sterilizer is supplied with single door or double doors made of 304/316 S.S. The doors are either manually operated Hinged type or having automatic electromechanical type sliding arrangement.

The Unit along with various accessories & piping is supported with Frame designed for proper load distribution on floor.

PIPING :

The piping & valves directly connected with chamber is of stainless steel 316 Proportional control Valve is provided for steam inlet for precise temperature control.

ACCESSORIES / OPTIONAL :

Superheated-Water-Shower

» The loading carriage is made of stainless steel 316 with specially designed trays, Floor trolleys made of S.S.

» Filter in-line Sterilization, in-line integrity testing.

» Vacuum system to use the sterilizer as autoclave system for porous load.

» Automatic Loading & Unloading.

» Load Rotating system for homogeneous heat transfer.

AUTOMATIC PROCESS CONTROL SYSTEM :

The control system is consisted of advance PLC & Printer. This unit controls complete sterilization by managing various parameters such as Fo, Temperature, pressure etc. It has an easy operator interface with possibilities of customization of cycles & manual operations.

The system gives complete process documentation with the help of in-built system.

Computerized control system (SCADA) to communicate with PLC for controlling & supervising the process externally.
(Optional Feature)

Air-Steam-Sterilizer

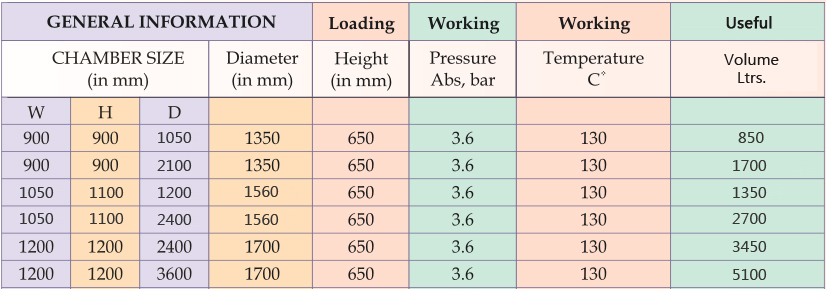

As per your need
We also offer any other chamber dimensions/specifications designed for special applications/requirements.
